Stingray Grand Sport & Z06 C7 Corvette ZR1 Front Splitter Lip
  1. Home
  2. C7 ZR1 Splitter

C7 ZR1 Splitter

Description SKU [45-4-215]CFZ
Undertray Option
$1,149.00 USD

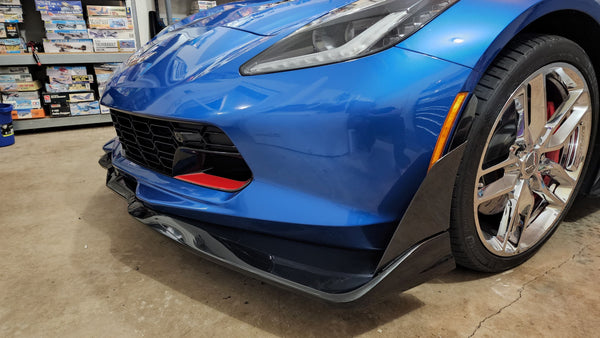

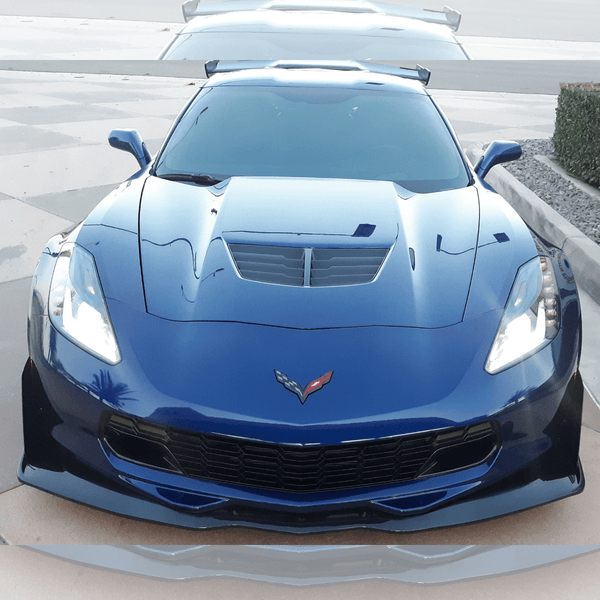

C7 ZR1 Front Splitter for Stingray, Grand Sport & Z06

Introducing the ACS-ZR1 Splitter for the C7 Corvette!

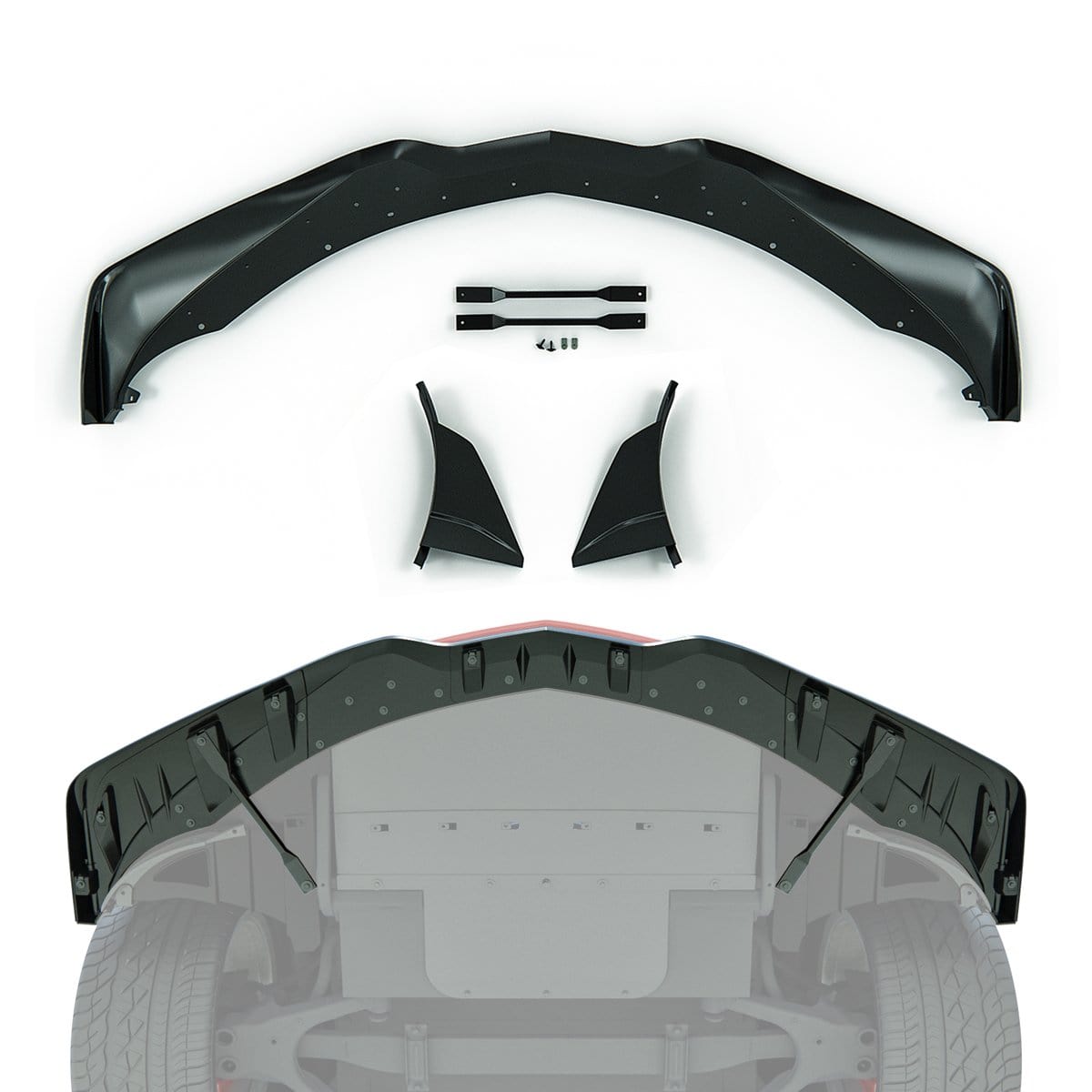

The C7 Corvette ZR1 Splitter is derived from the ZR1 aero package but adapted to match the non-ZR1 bumper. Designed with integrated side winglets, and a fully reinforced bottom. This is the most aggressive & performance-driven splitter we offer for the Chevrolet C7 Corvette.

What's the benefit of the ACS-ZR1 Splitter? We are re-using all the OEM mounting points and existing holes (if you are changing out your existing splitter). That means, no additional drilling, no modification to your C7, and fully reversible! This is an accurate profile from the original, yet tweaked enough to make it road-worthy for the Stingray, Grand Sport, and Z06!

Bigger is better

The ACS-ZR1 Splitter is our largest surface area splitter, but this doesn't mean you are sacrificing ride height and driveability. It offers a better ride height and angle of attack than the GM Z06 Splitter (see image below comparing). You'll be able to take this splitter into some of the most challenging driving conditions such as steep driveways and inclines entering parking lots.

How it is made

The ACS-ZR1 Splitters are manufactured in PC Composite, which is a manufacturing technique generally reserved for high volume production runs due to its expensive tooling investment. The result is black molded parts with extreme resistance to heat and scraping capabilities. Ideal for splitter applications.

Surface finish

Like all our C7 Corvette products, the ZR1 splitter is coated in a Carbon Flash Black metallic finish. The ideal surface finish for a C7 Corvette as it will match all other CFZ components and accent pieces such as your front grill, hood insert, fender insert, rear diffuser, and more!

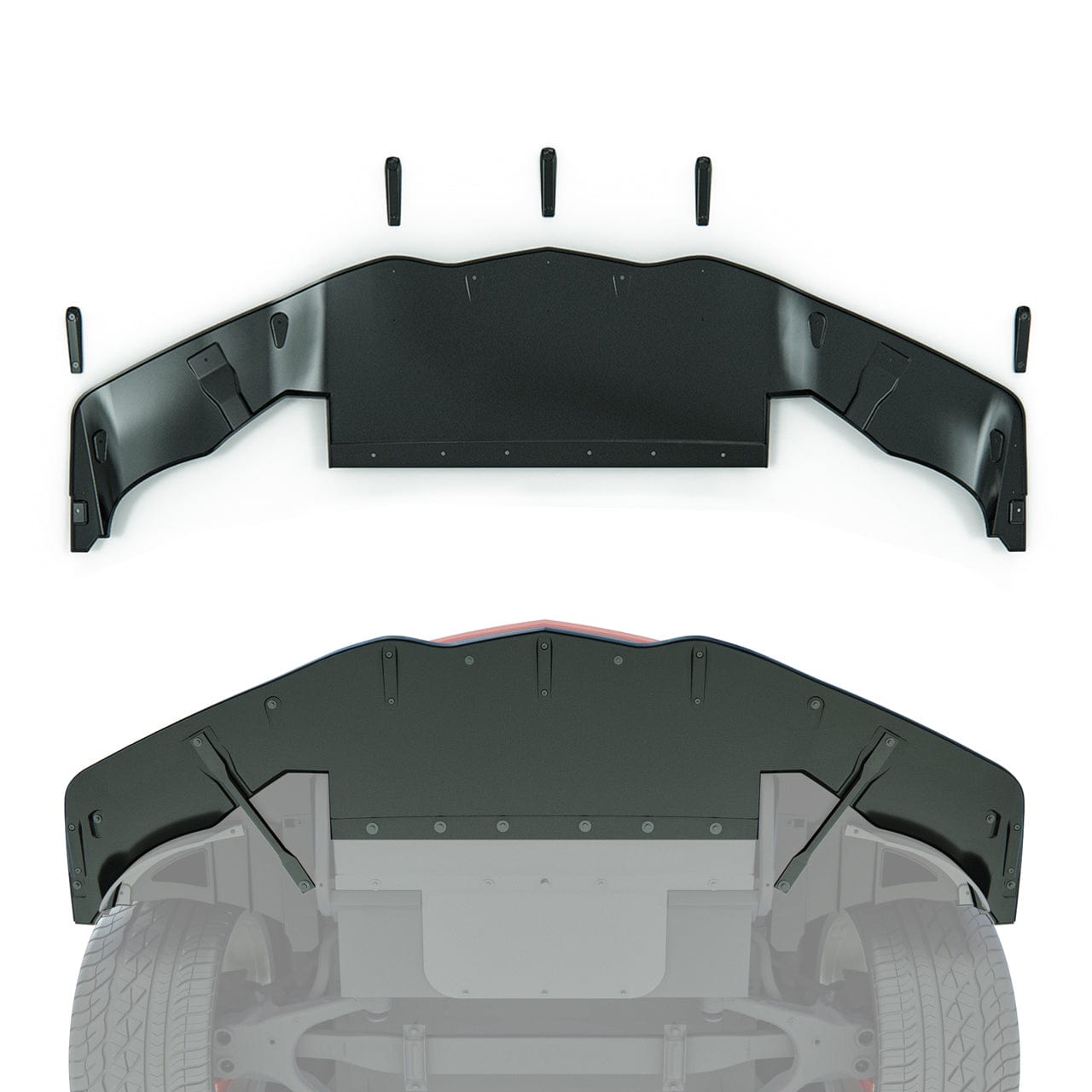

Undertray Option

The undertray panel is optional when ordering the C7 ZR1 Splitter. It is installed after the splitter installation is completed. It does close off the bottom surface of the splitter, for a flat clean aero optimized setup. In addition, small skid plates are included to help with scrapes while driving around town.

What material are your splitters made of?

Splitters is made in PC Composite, which is a manufacturing technique generally reserved for high volume production runs due to its expensive tooling investment. The result is a black molded parts with extreme resistance to heat and scraping capabilities. Ideal for splitter applications.


How is the splitter installed? Is drilling required?

The splitter will require additional drilling as rivets are used to secure the components to the car; however, factory mounting hardware is also reused for additional support. The use of two-way tape is not recommended.



What surface finish should I get?

If you are wanting to paint the parts yourself or have someone else paint them, then Primer is the choice. Primer is an unpainted surface that requires a final sanding prior to paint. Satin Black is a matte finish similar to a plastidip effect. We do not recommend this finish unless you have a matte theme on your C7. Carbon Flash Metallic Black is our recommendation for all products on a C7 Corvette. This color will match the trim pieces found on your C7 including the front grill, rear diffuser, fender inserts. Essentially, all black accent pieces are in Carbon Flash Metallic Black.


Are these items in stock? When can I expect delivery?

Generally, we keep stock of all our products; however, in the event of a back order you will be notified with an estimated time (Typically, less than two weeks). Transit times vary on location, but 3-5 business is the standard time (delays due to customs are out of our control). You can contact us via order@acscomposite.com to upgrade to expedited services.


  • C7 Stingray 2014-2019
  • C7 Grand Sport 2016-2019
  • C7 Z06 2015-2019
Shipping Dimensions:

76x30x6" 15lbs

X

Primer:

Primer is an unfinished surface that will require a final sanding prior to painting. Primer is a great option for those looking to customize and/or paint the parts themselves or have a body shop handle the paint. Primer is not intended to be installed as is on a vehicle. There are no UV stabilizers in the primer coating and will, therefore, degrade over time when exposed to sunlight

Carbon Flash Black:

CFZ is a black paint finish with a silver metallic flake in the paint. From far it appears as a gloss black finish; however, upon closer inspection a silver metallic flake can be seen inside the paint finish. CFZ matches all C7 Corvette accent pieces on the Corvette including the fender insert, hood insert, front grill, rear diffuser, and more. Carbon Flash Metallic Black is highly recommended by us for any Corvette parts.
